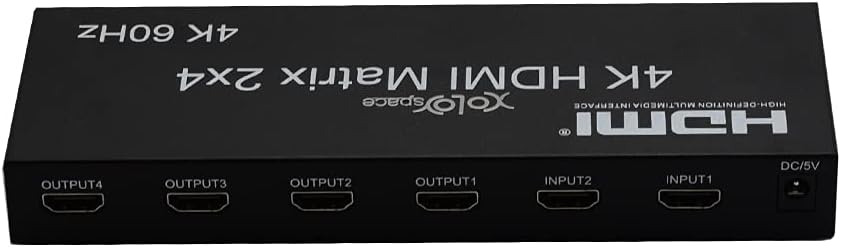

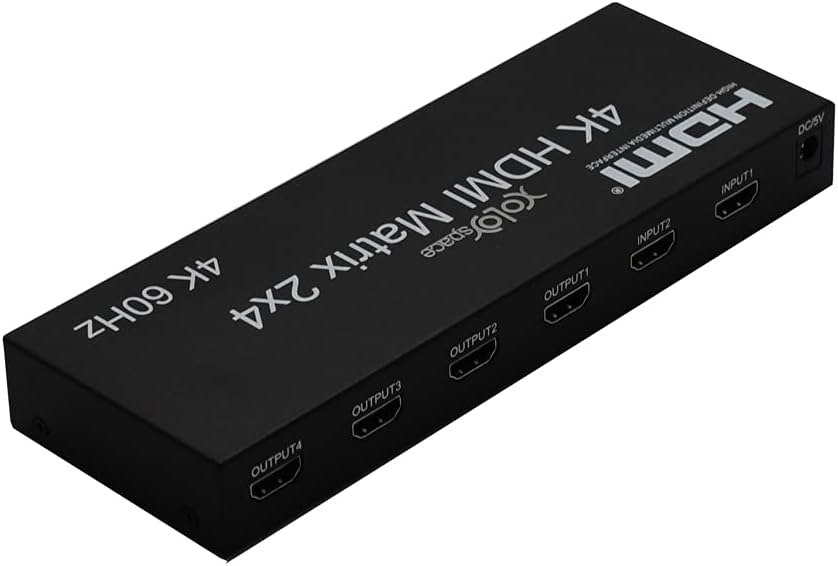

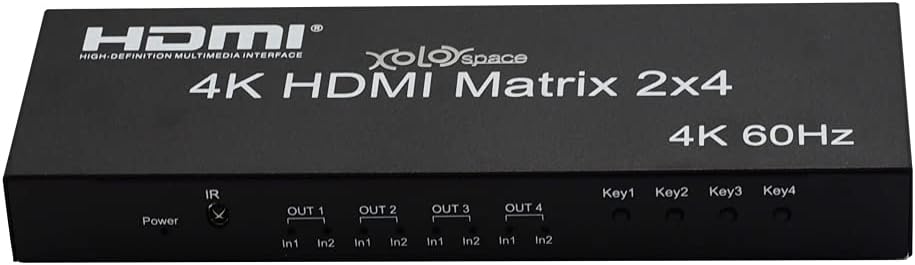

41241 4k 60hz 2x4 HDMI Matrix switcher with Optical Audio Out Supports HDR and downscaler

Features: *Compliant with HDMI 2.0b, HDCP 2.2 / HDCP 1.4; * Video resolution up to Up to 4K2K@50/60Hz(YCbCr 4:4:4),4K2K@30Hz. All HDMI 3D TV format, etc.; Color space: RGB, YCbCr4:4:4,YCbCr4:2:2, YCbCr 4:2:0; Color Depth: 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]; 8-bit [4K60Hz (YCbCr4:4:4)]; * Support for 4K (input) resolution 2K (output)(Down scaler) * Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time * 2 HDMI inputs switch and split to 4 HDMI displays. * HDMI outputs support LPCM/Dolby/DTS 5.1 channel Optical Audio Formats: PCM2.0, 5.1ch; L/R Audio Formats: PCM2.0CH Control is via front panel buttons and IR remote Suggest cable length: within 3 meters by 26 or 24AWG HDMI 2.0b fast speed cable Troubleshooting: 1.Not support refresh frequency, 3D or dol-by vision up/downscaler. E.g. input 4k 30hz and output will be 1080p 30hz but not 1080p 60hz on a 1080p TV. 2.Picture flash or freeze: change better quality and shorter HDMI cables 3.Not support the highest audio format you want: check if two or more simultaneous outputs support 4.HDMI output does not support HDMI ARC port on sound bar 5. Not support CEC.

• Switching either of the two 4k 60hz HDR HDMI inputs to any of the 4 HDMI outputs simultaneously
• Supports HDMI resolution up to 3840*2160/60Hz and supports HDR and 3D
• With dowscaler: take input 4k 60hz and output 4k 60hz and 1080p at the same time (NOTE: not support refresh frequency, 3D or dol-by vision up/downscaler)
• Support 2 HDMI audio outputs, 3.5mm earphone jack and optical output at same time (not support ARC)
• Support LPCM/Dol-by audio /DTS 5.1 pass through (compare the two or more outputs sink and take the lower audio format as the output)
